Best Hoist Manufacturers Bangalore

Hoist Manufacturers Bangalore

It’s Truly Multifunctional

Build More.
Build Fast..!!
Build Safe…!!!

As one of the trusted Hoist Manufacturers in Bangalore, INNOMAC offers high-performance material hoists designed for reliability and safety at construction sites.

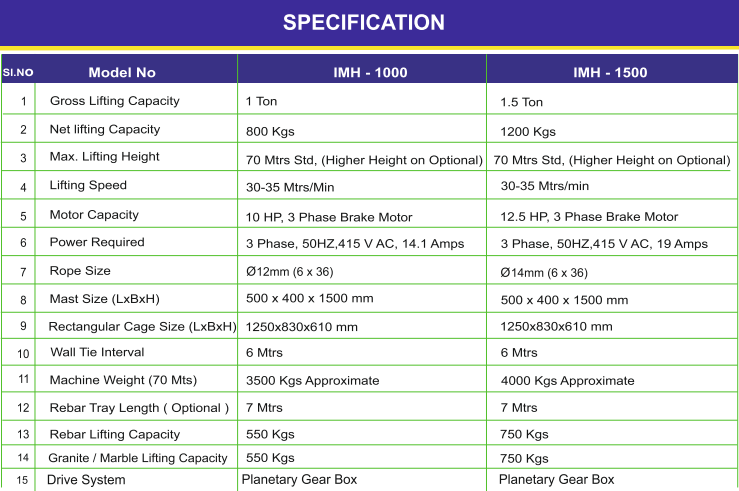

MODELS: IMH1000 & IMH1500
(In Compliance with IS12466:2012)

SAFETY FEATURES

Emergency cut off switch
Power fail safe brake motor
Mechanical free fall arrester lock
Upper limit switch
Lower limit switch
Fully guarded drive unit

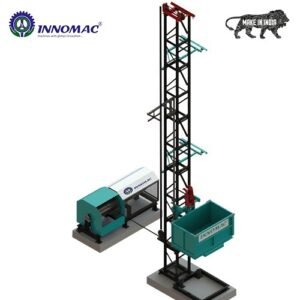

Innomac material hoist is a rugged design system for easy vertical material movement at construction sites, offering best-in-class features, reliability, and safety. As one of the trusted Hoist Manufacturers Bangalore, we deliver equipment built to perform under tough site conditions.

The drive system of the machine features the latest technology In-line gear box and an energy-efficient, reliable S-4 Duty Brake Motor. The built-in brake system provides safety through self-locking during power failure. Additionally, the machine is equipped with a mechanical safety lock in case of rope slips or rope damage, ensuring maximum on-site protection.

STANDARD ACCESSORIES :

Mechanical Safety Lock:

This is a free fall protection system which automatically latches the material cage to the mast in case of any rope failure.

Hour Meter:

INNOMAC has introduced Hour meter in material hoist which can help P & M team to monitor the machine utilization and plan scheduled maintenance activities.

Upper and Lower Limit Switch:

All models come with safety top and bottom limit switch as a standard feature which auto cuts off the power in case of the operator missing to switch it off in time.

Emergency Shut-Off Switch:

INNOMAC provides dual emergency Switches, one on the control panel and another on the pendant as a standard safety feature which can be used in case of an emergency to stop the machine immediately.

Pendant Operation System:

This helps the operator to control the machine easily moving around it.

Heavy Duty Gear Box:

Planetary Gear Box is directly coupled with the brake motor and thus eliminates conventional belts & chains, hence is low Maintenance Technology. hence is low Maintenance Technology.

Bigger Cage:

INNOMAC Provides the largest cage among any brands with the size of 1250 x 830 x 610 mm this helps to carry big volume Materials, concrete blocks and other items up to the rated net capacity of the equipment.

Masts:

The Masts are Designed for Highest Reliability Factor, made on Necessary jigs and fixtures to ensure Interchangeability and Perfection of Fabrication.

Wall Ties:

This eliminates the scaffolding and other arrangement costs for installing the masts. The wall tiles are designed for fixing at 6-meter intervals.

Jib Crane Unit (Optional) :

Special attachment with manual winch to ensure Safe & Easy erection of Mast structure/Tower.

Wall tie Installation Platform ( Optional ):

INNOMAC has introduced Wall Tie installation platform for the first time in India for Material hoists
